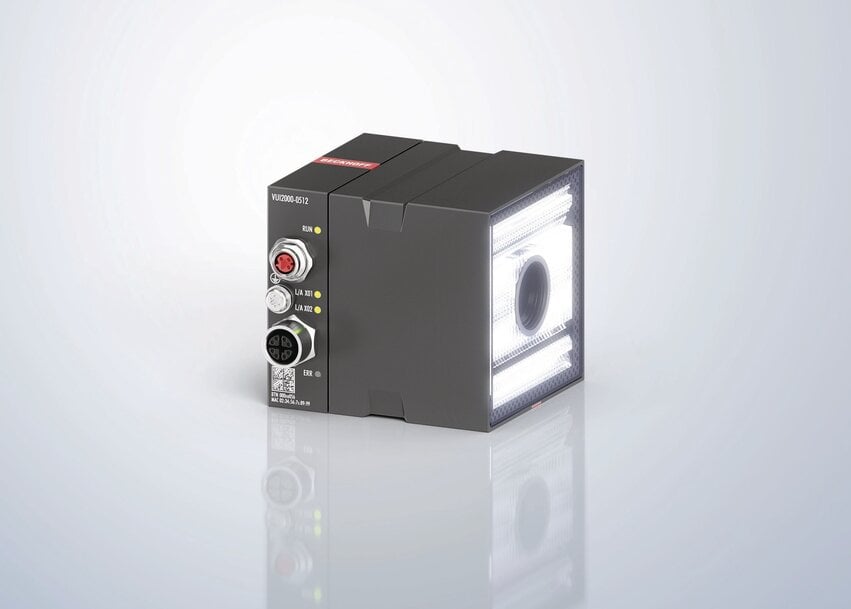

Vision Unit Expands for High-Precision Inspection

Beckhoff has expanded the Vision Unit Illuminated series to include 16 hardware variants featuring liquid lens technology and integrated polarization for industrial inspection.

The Vision Unit Illuminated (VUI) functions as a decentralized vision system that consolidates image acquisition, adjustable optics, and illumination into a single IP65/67-rated housing. By integrating these components into the automotive data ecosystem and broader industrial control environments via EtherCAT, the system reduces the spatial footprint and wiring complexity typically associated with modular vision setups. The latest expansion introduces sensors with resolutions of 5.1, 8.1, and 12.4 megapixels, targeting applications that require high-speed cycle detection or high-precision metrology.

Technical Integration of Adjustable Optics
A central mechanism of the VUI series is the integration of liquid lens technology, which allows for software-driven focal adjustment without mechanical movement. This approach minimizes wear in high-vibration environments common in the digital supply chain and manufacturing lines. The 16 new device variants leverage these optics alongside global shutter sensors, which eliminate rolling shutter distortion—a critical requirement for capturing accurate geometry on fast-moving conveyor systems.

Suppression of Surface Reflections via Polarization
The addition of crossed polarizing filters addresses a specific challenge in optical quality control: the interference caused by specular reflections. By utilizing polarized light, the VUI captures high-contrast images through transparent or highly reflective materials, including glass, plastic films, and liquid surfaces. This hardware-level filtering enables the detection of sub-surface defects or printed markings that would otherwise be obscured by glare. In technical applications such as pharmaceutical packaging or electronics assembly, this reduces the computational load on image processing algorithms by providing a cleaner raw signal.

Robustness and Control System Synchronization
The hardware is engineered for the thermal and mechanical stresses of machine building. Because the VUI is fully integrated into the TwinCAT vision software environment, the camera parameters, illumination strobing, and liquid lens focal position are synchronized with the PLC (Programmable Logic Controller) cycle. This real-time coordination ensures that focus settings can be changed "on the fly" to accommodate varying product heights or inspection requirements without manual intervention, maintaining throughput in flexible manufacturing cells.

Edited by Romila DSilva, Induportals Editor, with AI assistance.
