Noise-Optimized Spring-Applied Brakes for Precision Motion Control

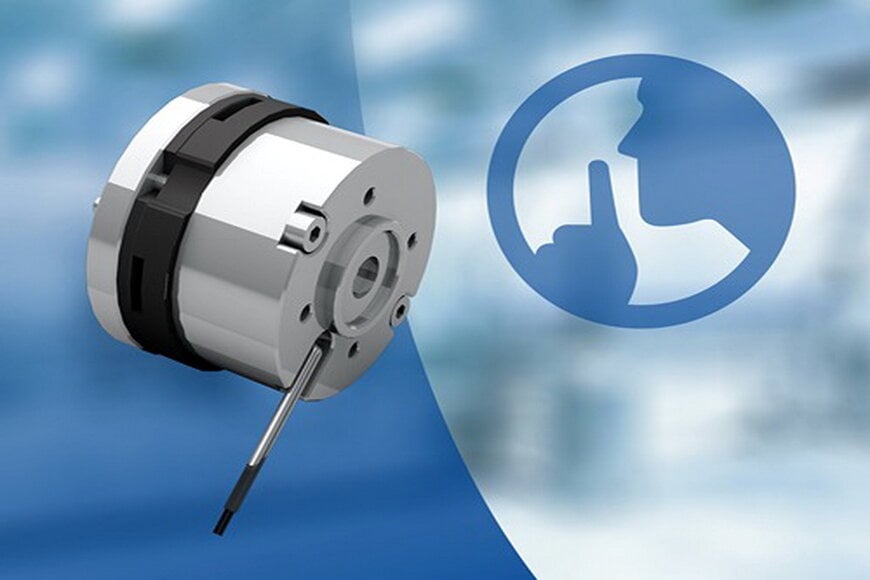

The E90R LN is a redesigned spring-applied brake engineered to provide fail-safe deceleration and load holding for industrial automation and medical technology. By utilizing a magnetic release mechanism, the component ensures operational security in the event of a power failure, making it a critical safety element in the modern digital supply chain.

Mechanism of Fail-Safe Operation
The E90R LN operates on the fundamental fail-safe principle, where mechanical springs exert force on an armature plate to engage the brake when the system is de-energized. Upon the application of electrical power, an integrated electromagnetic coil generates a magnetic field that overcomes the spring tension, pulling the armature plate away from the friction lining to release the shaft. This binary state control ensures that the drive remains locked during emergency stop scenarios or total power loss.

Acoustic Optimization and Technical Refinements
The primary technical advancement in this redesign is the reduction of operating noise, a response to increasing requirements for low-decibel performance in clinical and high-precision environments. Dunkermotoren modified the internal driver geometry to minimize the mechanical play between the driver and the armature plate. This reduction in tolerance directly limits the vibrations and rattling typically associated with high-frequency cycling in spring-applied systems.

According to Michael Burgert, Product Manager Brakes at Dunkermotoren, noise levels have transitioned into a primary quality metric for machine manufacturers, particularly within medical technology. The optimized driver design addresses this by stabilizing the mechanical interface, which provides a more consistent acoustic profile throughout the service life of the brake.

Application Areas and System Integration
The compact form factor of the E90R LN facilitates integration into the existing automotive data ecosystem of modular drive components. Its application is most prevalent in sectors requiring high-duty cycles and precise positioning, such as:

By refining the mechanical tolerances, the system provides a more predictable response time and reduced wear on the friction surfaces. This engineering approach aligns with the standards set by the VDA and other regulatory bodies regarding the safety and efficiency of automated industrial components.
