Balluff Inductive Position Sensing for Compact Machines

A compact inductive position measurement system has been developed by Balluff to enable contactless, wear-free detection of metallic object positions in confined industrial environments. The system targets machine tool applications where installation space is limited but precision and reliability remain critical.

Addressing Space Constraints in Precision Machining

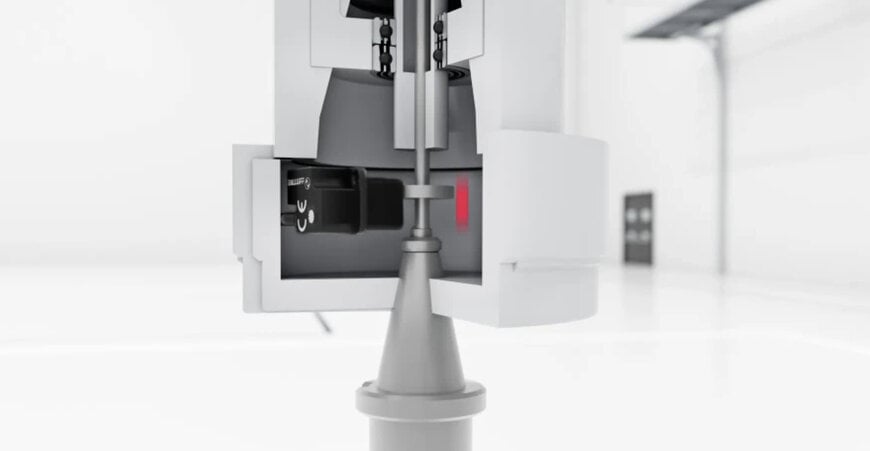

In machining centers, components such as tool spindles and tool changers require accurate position monitoring to ensure proper clamping and process stability. As machine designs continue to miniaturize, integrating sensing technology into restricted spaces becomes increasingly complex. Conventional sensors often require additional mounting space or compromise on measurement range.

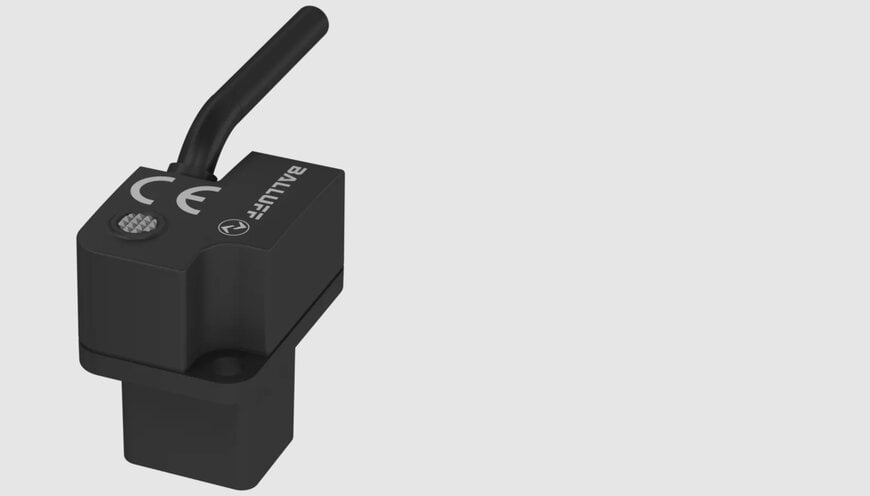

The inductive position measurement system BIP is designed to operate within these constraints, offering a measurement range of up to 10 mm while maintaining a compact form factor. This allows integration directly into tight mechanical assemblies without altering machine layouts.




Contactless Measurement Principle and System Architecture
The system uses an inductive sensing principle to detect the position of metallic targets without physical contact. This eliminates mechanical wear and reduces maintenance requirements compared to contact-based measurement methods. The absence of frictional components supports consistent measurement accuracy over extended operating cycles.

A key aspect of the system architecture is the availability of both analog output and IO-Link communication within the same device. This dual-interface design enables compatibility with existing control systems while supporting integration into digital industrial automation environments. IO-Link provides parameterization, diagnostics, and data access at the sensor level, enabling more flexible system configuration.

Integration and Functional Capabilities
The sensor is designed for straightforward integration into machine tool environments. IO-Link connectivity allows for simplified setup and programming, reducing commissioning time. The system can be configured to match specific application requirements without additional hardware modifications.

A programmable stroke counter is integrated into the sensor, enabling tracking of movement cycles. This function provides real-time data on component usage, supporting predictive maintenance strategies by correlating motion frequency with wear patterns and expected service life.

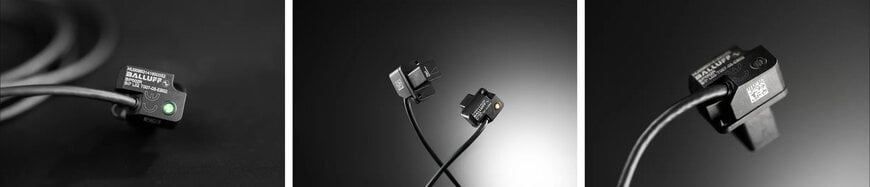

The design also accommodates different installation orientations, with cable exits configurable for horizontal or vertical mounting. This flexibility simplifies mechanical integration in constrained assemblies.




Operation in Harsh Industrial Environments
The sensor is engineered for use in demanding industrial conditions, including exposure to vibration, temperature variation, and contaminants typical in machining environments. Its robust construction ensures stable signal output and reliable operation under such conditions.

Application Impact in Industrial Automation
The system is suited for applications in machine tools, automated handling systems, and other industrial automation environments where precise position feedback is required in limited space. By combining compact design, non-contact measurement, and digital communication capabilities, the system supports improved process reliability, reduced maintenance, and integration into digital infrastructure.

Edited by Natania Lyngdoh, Induportals Editor — Adapted by AI.
