IO-Link load cell for dynamic industrial weighing

As automation systems increase in speed and autonomy, weighing systems are evolving from simple verification points into integrated process sensors. In this context, HBK introduced the PW22i single-point load cell with IO-Link communication for high-dynamic weighing applications in packaging machinery and industrial robotics.

Weighing requirements in high-speed automation environments
High-speed packaging lines, multihead weighers and robotic handling systems require short cycle times, high repeatability and stable measurement performance despite changing load conditions. These requirements are driven by the need to maintain throughput while supporting Overall Equipment Effectiveness (OEE) targets and advanced diagnostics.

Conventional weighing technologies can reach mechanical and communication limitations in these environments, particularly where dynamic loads and rapid measurement cycles are required. This has increased the importance of sensor-level integration within industrial automation architectures.

Sensor design for dynamic weighing conditions

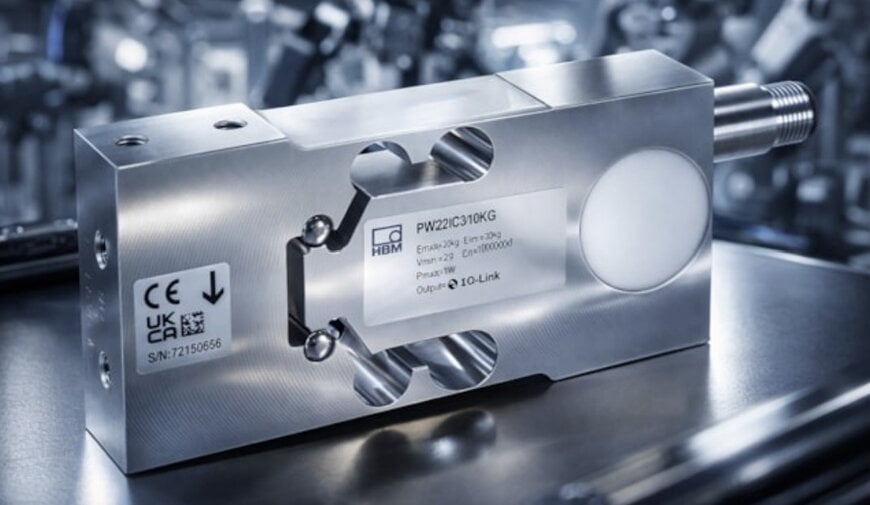

The PW22i single-point load cell is designed for use in high-dynamic mechatronic systems, including filling systems, packaging equipment and robotic end-of-arm tooling. The sensor integrates IO-Link communication to allow direct data exchange with higher-level control systems.

Mechanical rigidity and a high natural resonant frequency enable short settling times, supporting fast measurement cycles. These characteristics allow repeatable measurements in dynamic environments, helping reduce overfilling in packaging processes and maintain measurement stability in robotic applications.

The load cell is available with nominal capacities of 10 kg, 20 kg and 50 kg and is certified to accuracy class C3MR, supporting use in industrial weighing applications requiring defined metrological performance.

Direct integration into industrial communication architectures
Integration of IO-Link communication allows the PW22i to function as an intelligent sensor within connected automation environments. The standardised IO-Link interface and 4-pin M12 connection support simplified commissioning, device replacement and retrofitting into existing machinery.

Built-in features such as local signal processing, condition monitoring and diagnostic functions provide visibility into sensor status and process behaviour. These capabilities support predictive maintenance strategies and contribute to data-driven process optimisation within packaging automation and robotic production cells.

Mechanical robustness for industrial operating conditions
The PW22i is designed for industrial environments with an IP67 protection rating and includes a patented overload stop designed to withstand loads up to five times the nominal capacity. This design supports reliable operation under mechanical stress, off-centre loading and transient forces commonly found in dynamic automation systems.

Weighing as part of connected automation systems
By integrating measurement functions with industrial communication interfaces, weighing sensors are increasingly becoming part of connected automation infrastructure rather than standalone measurement devices.

Such sensor technologies enable machine builders and system integrators to incorporate weighing data directly into control strategies, supporting improved process stability, product quality and operational performance within modern smart manufacturing environments.
